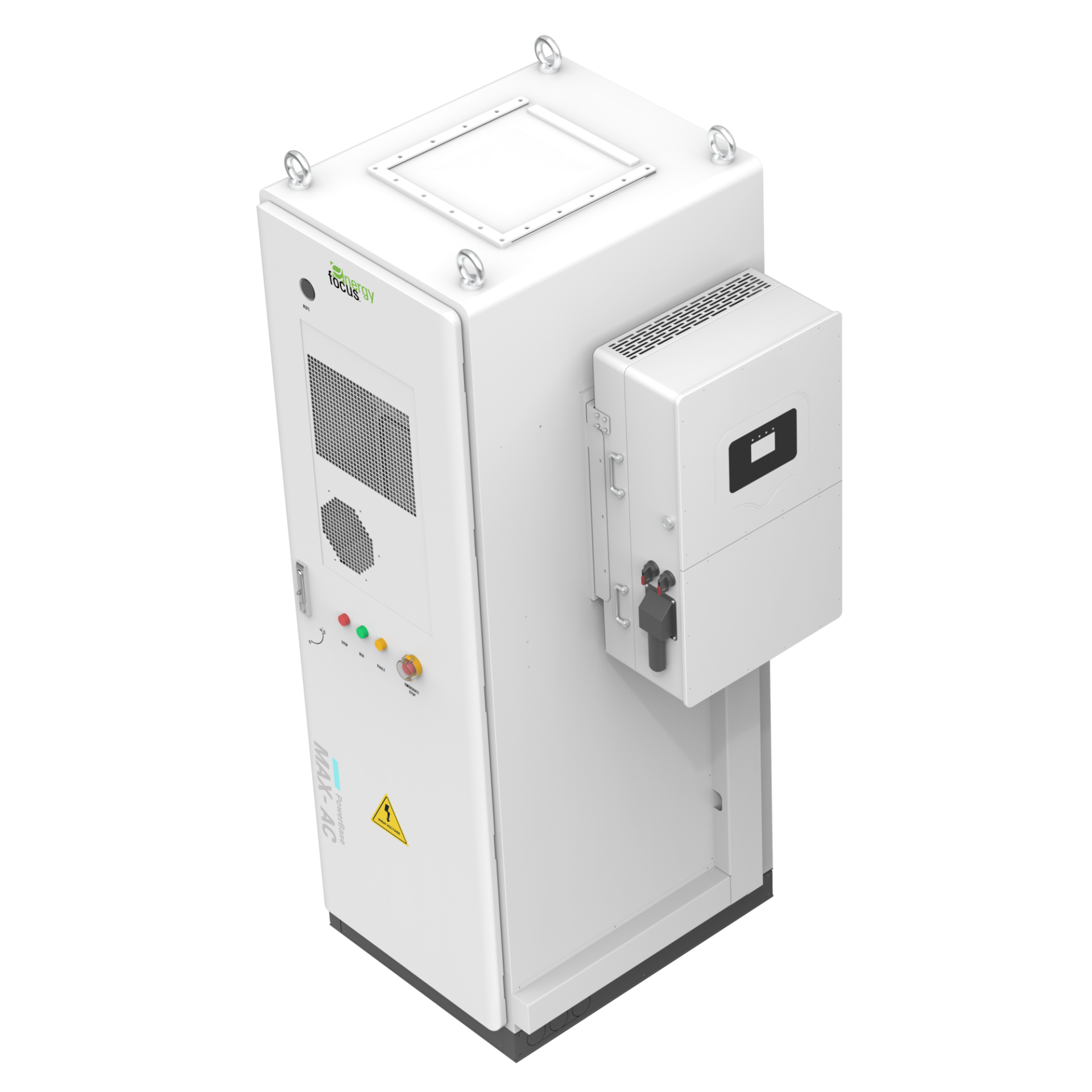

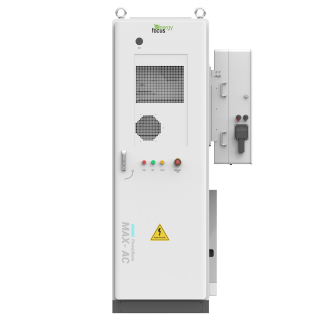

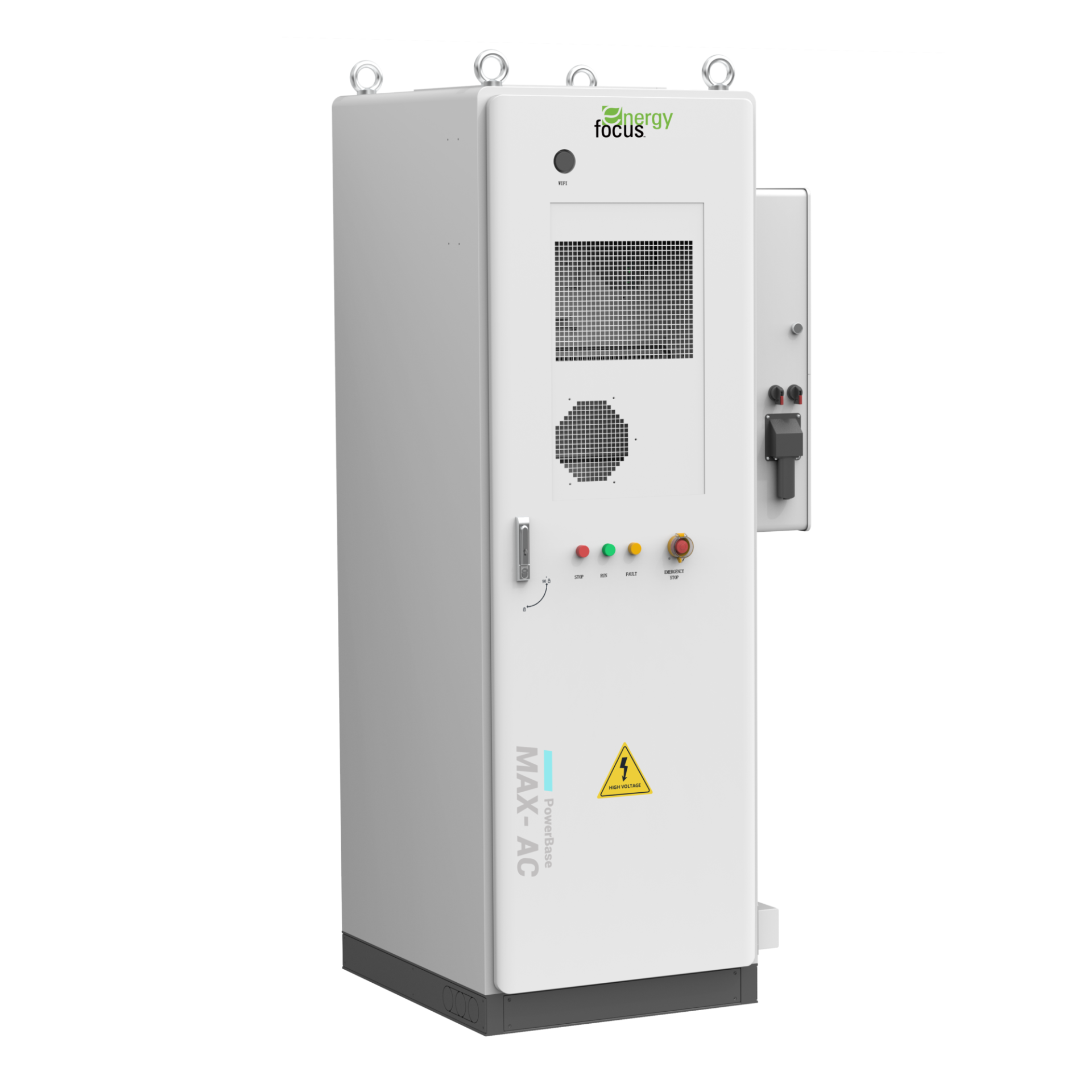

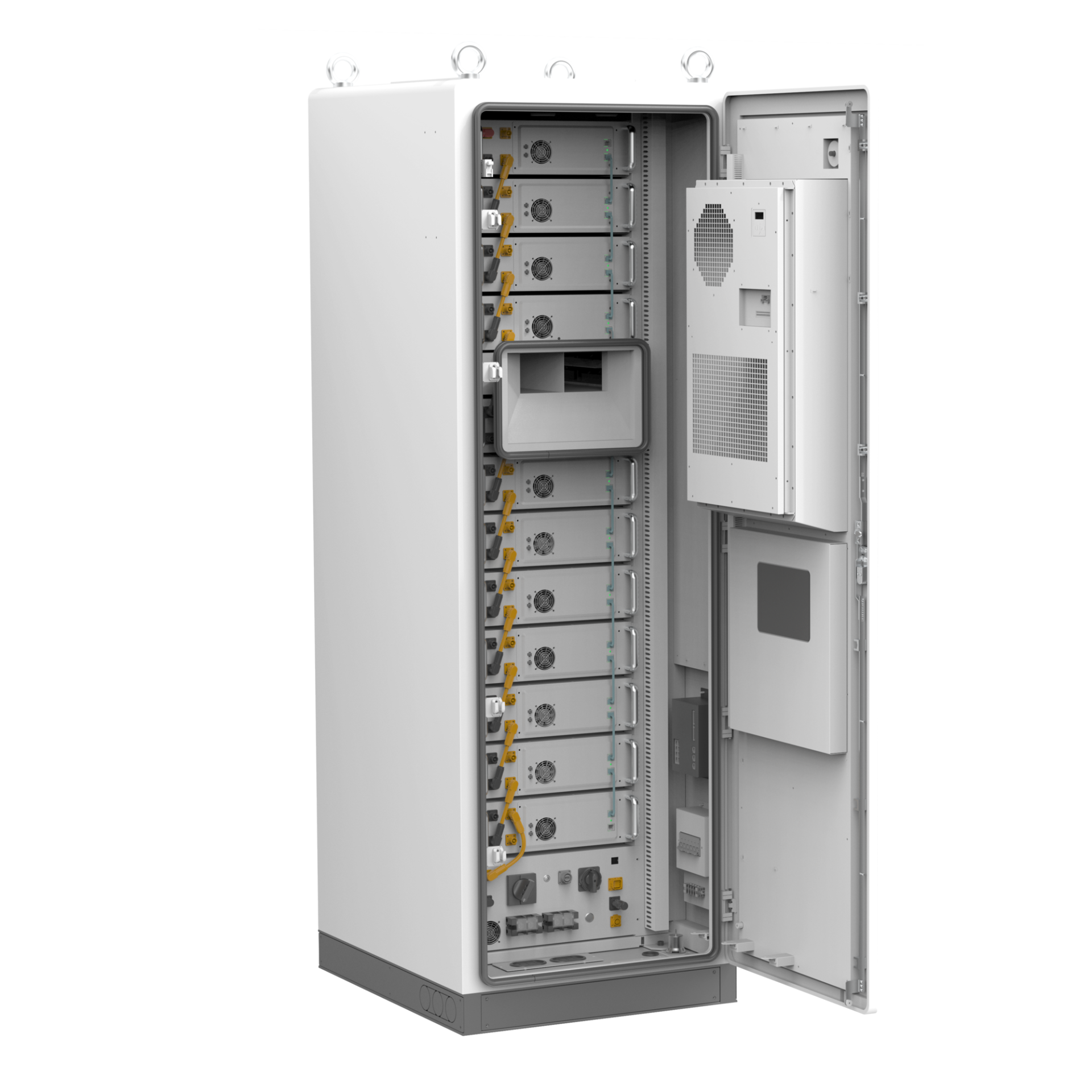

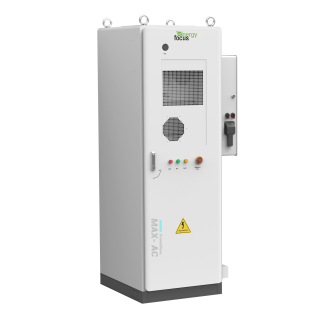

EFOI-MAX-60A

EFOU-MAX-60A is a compact 60 kWh air-cooled energy storage system offering safe, flexible, and IP55-rated power backup for commercial and industrial applications.
Spec Sheet
OUR FEATURE
Empowering a Brighter, Sustainable Tomorrow through Innovative Energy Solutions.
01

Convenient Operation

02

Extreme Compatibility

03

Easy Expansion

04

60kw  High Power

PRODUCT INFORMATION
Specification
 Battery Energy Storage  PBM061LCBA0-US  PBM061LCBA0-US  PBM061LCBA0-EU
Cell Chemistry  LiFePO4
Module Energy (kWh)  5.12
Module Nominal Voltage (V)  51.2
Module Capacity (Ah) 100
Battery Module Combination 6S2P 12S1P 12S1P
System Nominal Voltage (V) 307.2 614.4 614.4
System Operating Voltage (V) 281.25~340.8 562.5~681.6 562.5~681.6
System Energy (kWh) 61.44
Charge Current (A) 95
Discharge Current (A) 100
General Parameters
Dimension (W*D*H) 750*950*2280mm / 29.5*37.4*89.7in
Weight Approximate 1050kg / 2314.8lb
Working Temperature -20~55°C
Communication Interface CAN, RS485, Wi-Fi, LTE
Humidity 5%~85%RH
Altitude ≤2000m
IP Rating IP55
Storage Temperature -20~35°C
Recommend Depth of Discharge 90%
Cycle Life >8000 cycles
Warranty 3 years free, paid from the 4th to the 15th year
Certification UL1973, UL9540A, UN38.3, IEC62619
UL 1741-2021 (incl UL1741SB), CSA C22.2, No 107.1-16
IEEE 1547-2018 & 1547a-2020 &
1547.1-2020 (SRD V2.0), UL1699B
