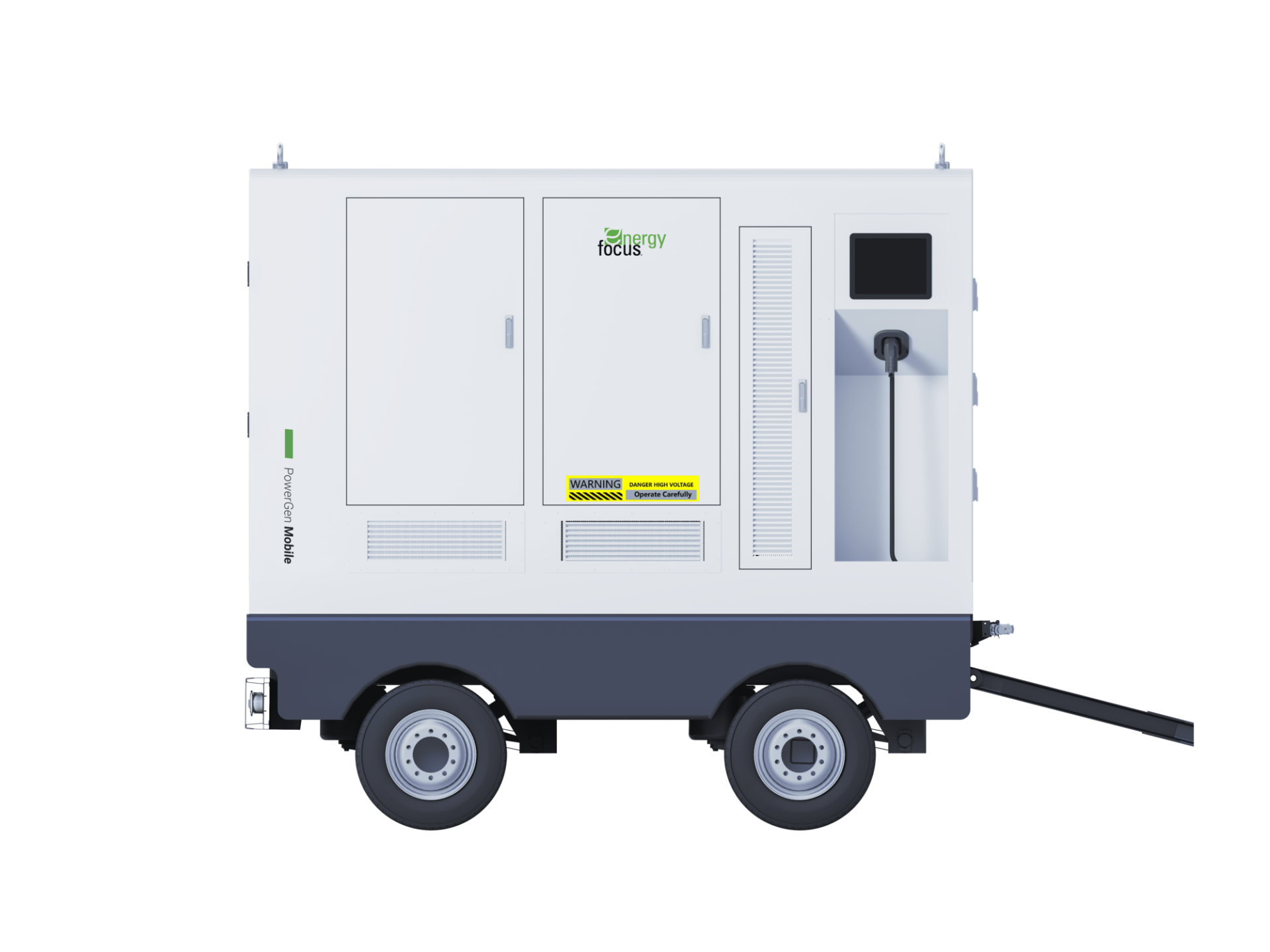

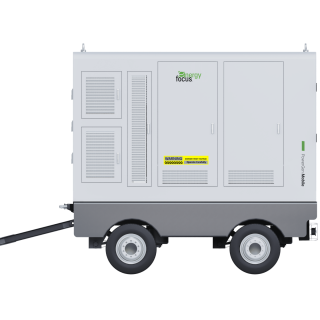

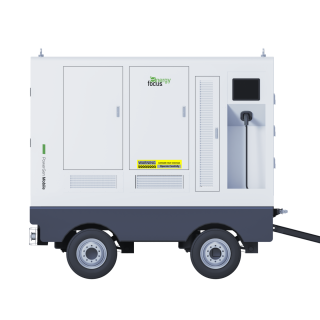

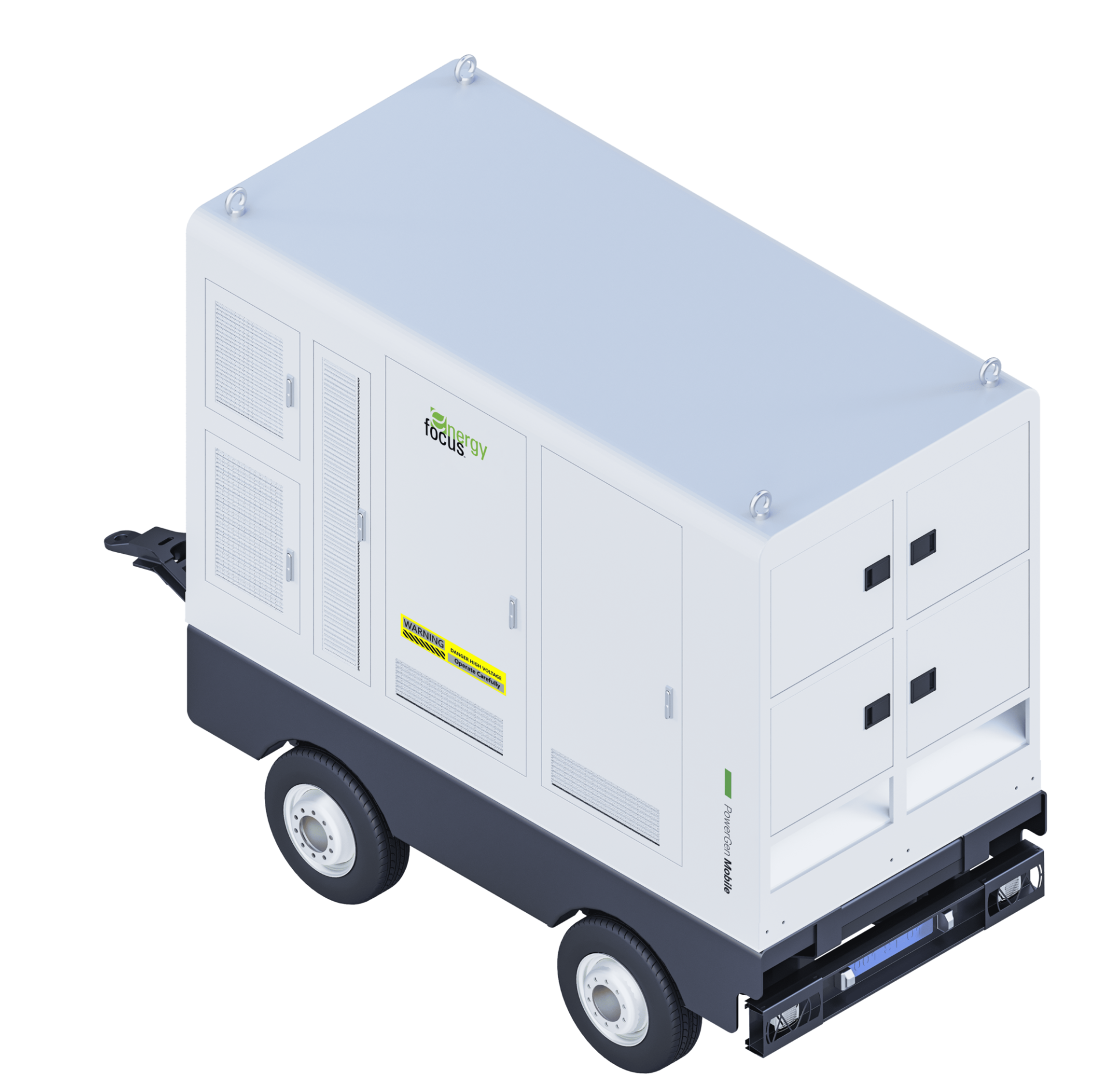

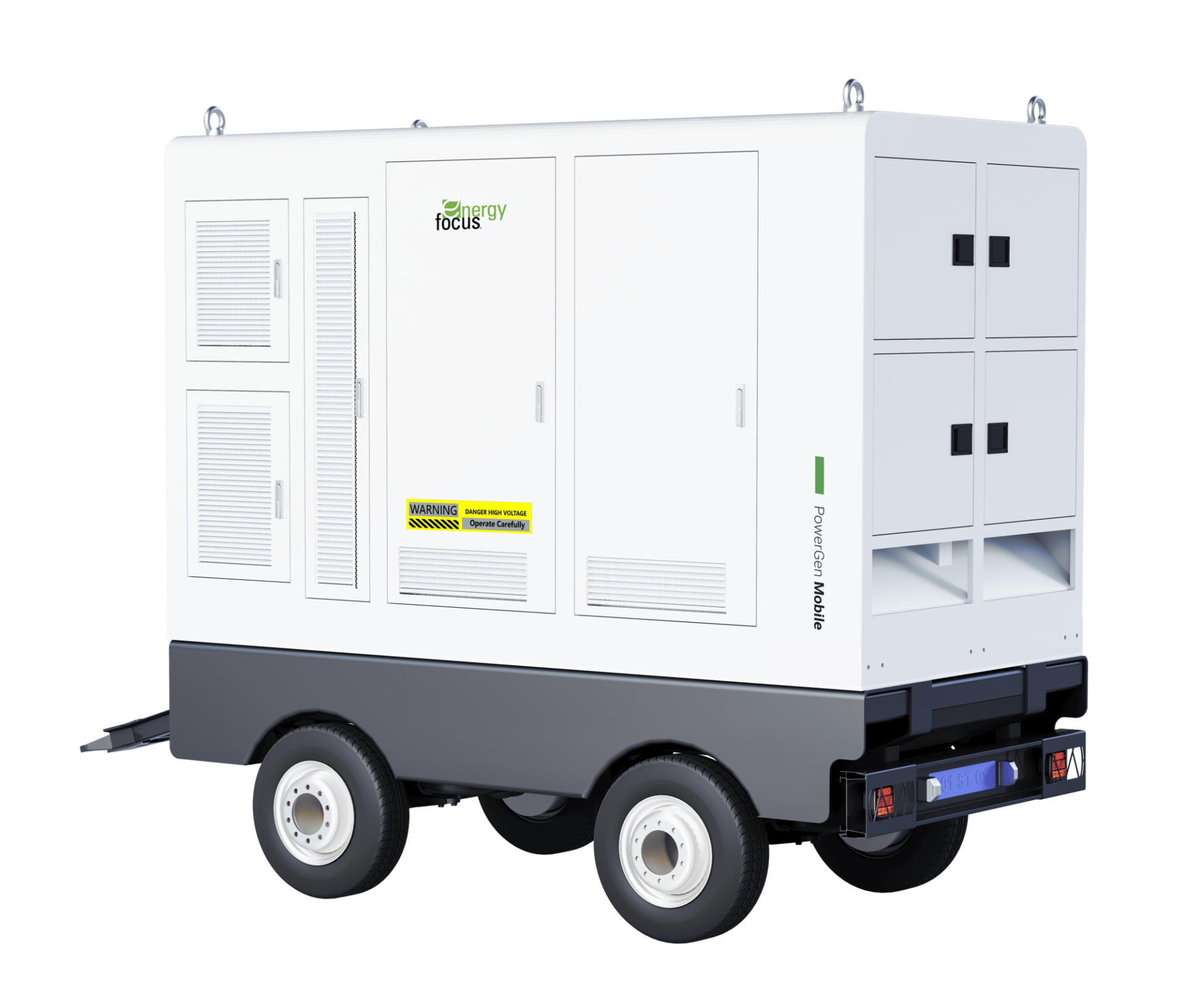

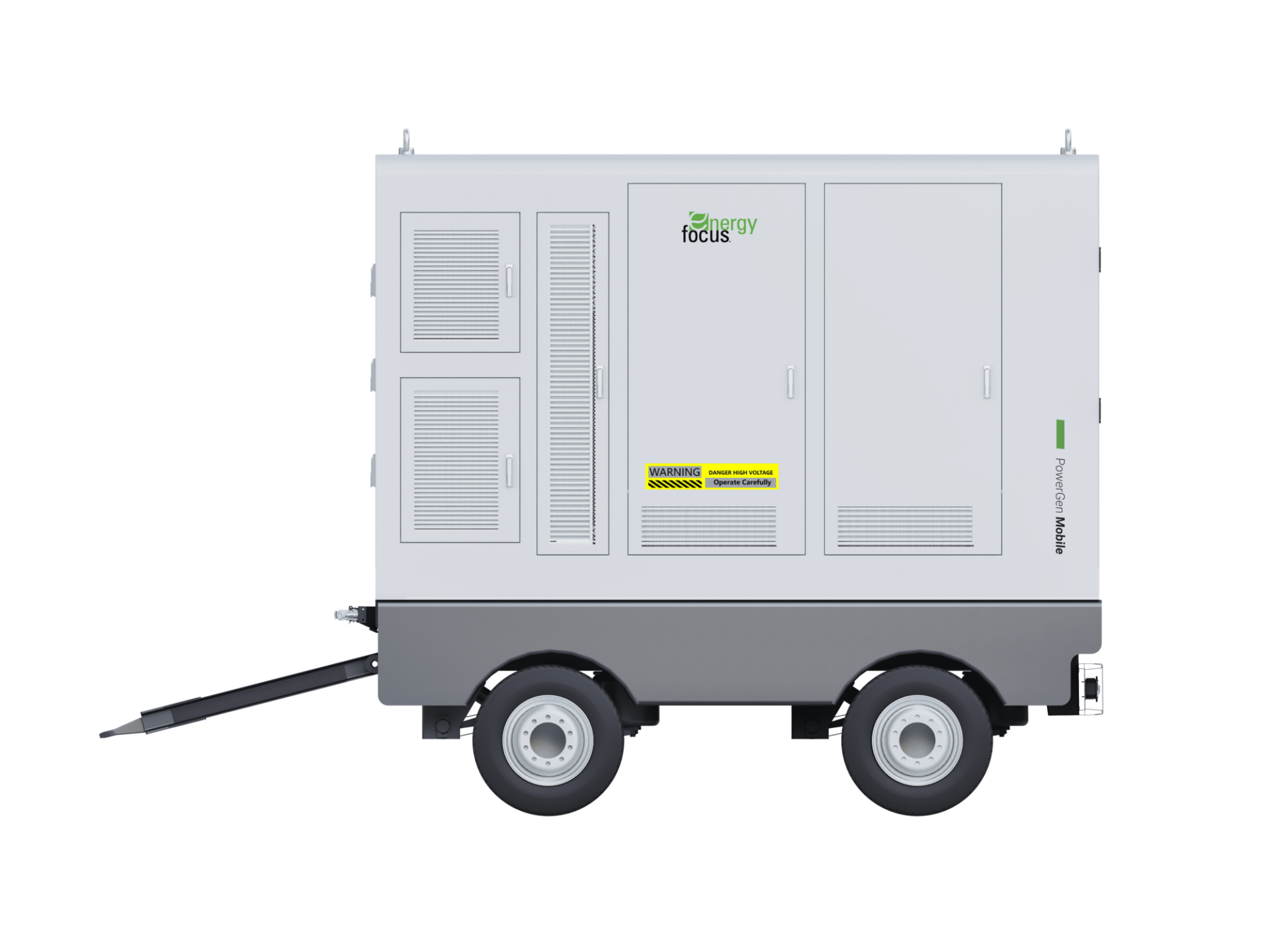

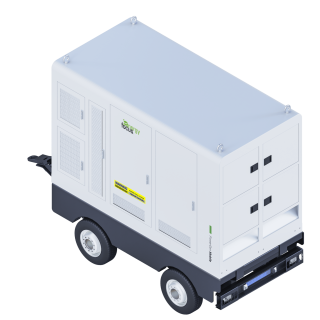

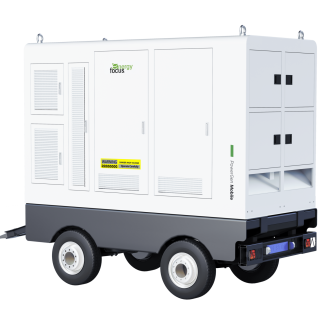

EFOI-PGM-560W(Coming soon)
Multi-Source Energy Input
Optimized Generator Usage
Portable Durability
Smart Operation and Maintenance
| Battery Energy Storage | |
| Cell Chemistry | LiFePO4 |
| Nominal Energy(kWh) | 560 |
| Voltage Range(Vdc) | 750~908.8 |
| Nominal Charging Current(A) | 330 |
| Nominal Discharging Current(A) | 330 |
| Max. Discharging Current(A) | 400 |
| DOD | 90% |
| Mobile Charging | |
| USB C *1(W) | 120 |
| USB A *1(W) | 10 |
| PV Input | |
| Input Power(kW) | 120 |
| Input Voltage Ranger(Vdc) | 750~908.8 |
| AC Output(480Vac On-Grid) | |
| Rated Power(kVA) | 270 |
| Rated Voltage(Vac) | 480 (-15%~15%) |
| Rated Frequency(Hz) | 60 (-5~5) |
| AC Connection | 3P4W |
| THDi | ≤ 3% |
| Voltage Ripple Coefficient | ≤ 1% |
| Power Factor | 0.99/-1~1 |
| AC Output(For Load 480Vac Off-Grid) | |
| Rated Power(kVA) | 270 |
| Max. Power(kVA) | 324 |
| Rated Voltage(Vac) | 480(±15%) |
| Rated Frequency(Hz) | 60(±5) |
| AC Connection | 3P4W |
| Power Factor | 0.99/-1~1 |
| AC Output(For Conector 208Vac Output) | |
| Rated Power(kVA) | 35 |
| Rated Voltage(Vac) | 208 |
| AC Connection | 3P4W |
| AC Output(For Socket 120Vac Output) | |
| Rated Power(kVA) | 12 |
| Rated Voltage(Vac) | 120 |
| AC Connection | 1P2W |
| EV Charging & Charging ESS(AC Charging) | |
| Interface Type | Combo (SAEJ1772) |
| Current Rating(A) | 60 |
| Power Rating(kW) | 14.4 |
| Input/output Voltage(Vac) | 240±10% |
| Input Frequency(Hz) | 60 |
| AC Connection | 2P3W |
| EV Charging & Charging ESS(DC Charging) | |
| Interface Type | Combo (SAEJ1772) |
| Rated Power(kW) | 120 |
| Output Voltage(to EV)(Vdc) | 150~1000 |
| Input Voltage(to ESS)(Vdc) | 750~908.8 |
| Compatible Diesel Generator | |
| Rated Power(kVA) | ≤400 |
| Rated Voltage(Vac) | 480 |
| Rated Frequency(Hz) | 60 |
| General Parameters | |
| Product Model | Z-XG560270H1-US03 |
| Parallel Capable | Yes ( Up to 6) |
| Ingress Rating | IP54 / NEMA 3R |
| Working Temperature(°F/°C) | -4~131 / -20~55 |
| Storage Temperature(°F/°C) | -40~149 / -40~65 |
| Relative Humidity | 5~ 95% (No condensing) |
| System Noise(dB) | <75 |
| Cooling | Air cooling |
| Fire Suppression System | Included |
| Altitude(m) | 5,000 (>3,000 derating) |
| Certifications | UL1973, UL9540, UL9540AUL1741, UL9741, UL2202(UL2231-1, UL 2231-2)UL991, UL1998 |
| Dimensions- W*D*H (mm/in) | 1752*4140*2000 / 69*163*79 |
| Weight(kg/lb) | ~5800 / ~12,786.8 |
